交流距離減衰式脫磁裝置
AC Distance Attenuation Type Demagnetizer

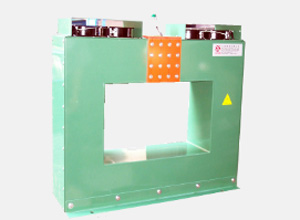

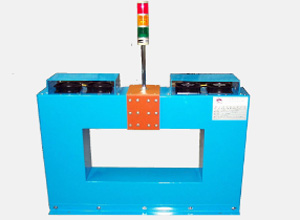

貫通型脫磁器為一種交流空心線圈,當線圈通電後,其線圈中孔內會產生交流磁場,當帶磁物件放入中孔內再取出後,就會消磁。

Coil Type magnetizer is a kind of alternating current air core coil, When magnetizing current field is generated inside the air core.

If you put in and out the magnetized work into the magnetic field, the regular magnetic aligned work is vibrated and magnetic domain becomes differential direction then the work is demagnetized.





MC-
*1A

型號

Model

有效內徑

Inner diameter

輸入電源

Power Input

脫磁力

Demagnetizing

MC-100

100W*100H*200L

AC220V/1ø.20A

9500AT

MC-200

200W*200H*200L

AC220V/1ø.30A

8500AT

MC-300

300W*300H*200L

AC220V/1ø.45A

8000AT

MC-400

400W*400H*200L

AC220V/1ø.60A

7500AT

MC-500

500W*500H*200L

AC220V/1ø.70A

7000AT

MC-600

600W*600H*200L

AC220V/1ø.85A

6500AT
